Canimal CAN-USB Transceiver

Technical Specifications

CAN Bus

Channels

• 3 CAN channels for versatile network configuration.

Protocol Support

• Full implementation of CAN protocol specification v2.0b, supporting both Standard and Extended frames.

Data Rates

• Standard CAN: Up to 1 Mbit/s
• CAN2 Flexible Data Rate: Up to 8 Mbit/s

Payload Capacity

• Standard CAN: Up to 8 bytes
• CAN2 Flexible Data Rate: Up to 64 bytes

Compatibility

• High-speed CAN connection, ISO 11898-2 compliant.

Connection Interface

• D-Sub 9-pin connector in accordance with CiA® 106 standards.

Ground Isolation

• Ground isolation available upon request; standard models feature non-isolated ground.

USB Connectivity

Connector Type

• USB HS (High Speed) 2.0 Type-C for high-speed data transfer and power delivery.

Data Transfer Rates

• Maximum Speed: 480 Mbit/s (60 MB/s)
• Write Speed: 25–30 MB/s
• Read Speed: 30–42 MB/s

Power Supply

• Powered via USB-C, eliminating the need for an external power source.

Termination

• Software-selectable termination for flexible network configurations.

Operating Temperature Range

• -40 °C to 125 °C
• Industrial and extended enclosure options available upon request.

Timestamp Resolution

• < 42 μs

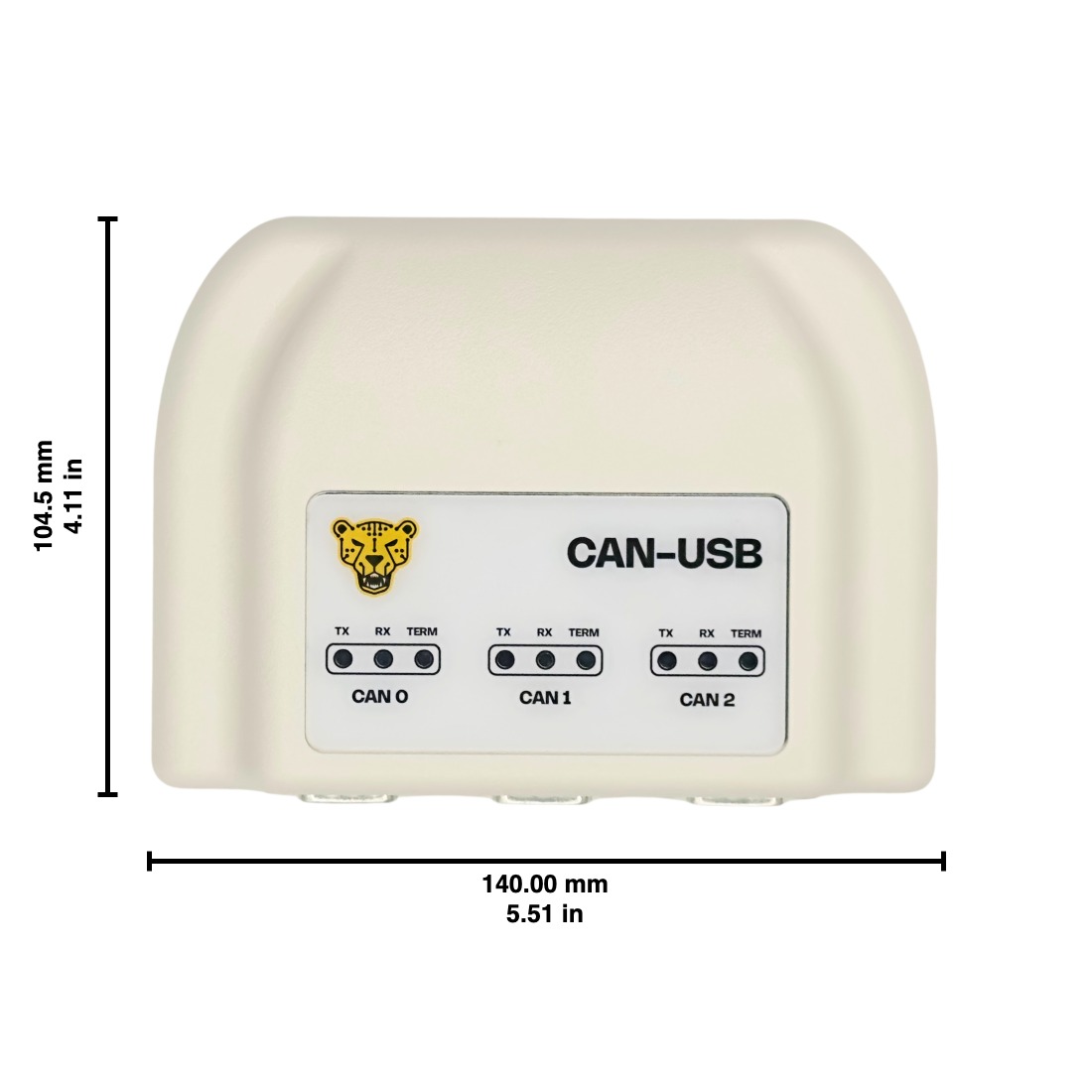

Product Dimensions

• Width: 140.00 mm (5.51 in)
• Length: 104.50 mm (4.11 in)
• Height: 36.50 mm (1.44 in)
